VICO
WWH 5-Megapixel Telecentric Lenses

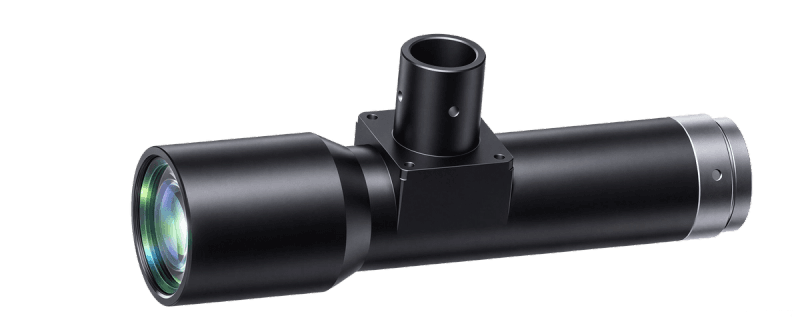

HR-WWH08-180CT-230
HR-WWH08-180CT-230
HR-WWH08-180CT-230 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.80 |
|---|---|
| Working Distance(mm) | 180 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 10 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.03 |
| MTF30 (Image-side)(lp/mm) | 95 |
| Depth of Field(mm) | 1.30 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 128.8 |
| NA | 0.04009 |
|---|---|
| Filter Thread | M32 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
