VICO
WWT Industrial Lenses
WWT230-075-91-AL
WWT230-075-91-AL

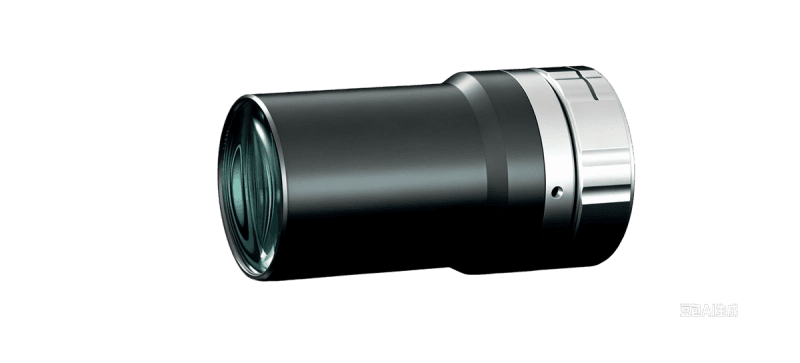

WWT230-075-91-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.75 |
|---|---|
| Working Distance(mm) | 91 |
| Max Sensor Size | 11(2/3") |
| F-Number | 7.5 |
| Distortion(%) | 0.01 |
| MTF30 (Image-side)(lp/mm) | 64 |
| Object Resolution(μm) | 8.2 |
| Depth of Field(mm) | 2.2 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 77.8 |
| NA | 0.05018 |
|---|---|
| Coaxial Light Support | No |
| Iris | No |
