WWT230-05-121-AL
WWT230-05-121-AL

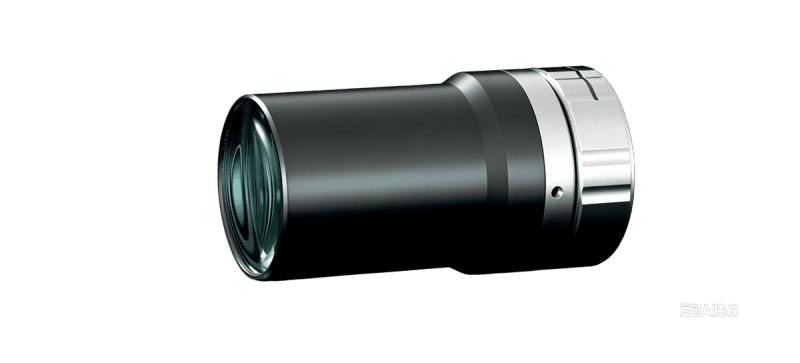

WWT230-05-121-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.5 |
|---|---|
| Working Distance(mm) | 121 |
| Max Sensor Size | 11(2/3") |
| F-Number | 7.0 |
| Distortion(%) | 0.03640 |
| MTF30 (Image-side)(lp/mm) | 106 |
| Object Resolution(μm) | 9.4 |
| Depth of Field(mm) | 2.2 |
| Focal Length(mm) | 45.52 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 66.4 |
| NA | 0.0357 |
|---|---|
| Filter Thread | M30x0.5 |
| Coaxial Light Support | No |
| Iris | No |
