WWT230-05-117S
WWT230-05-117S

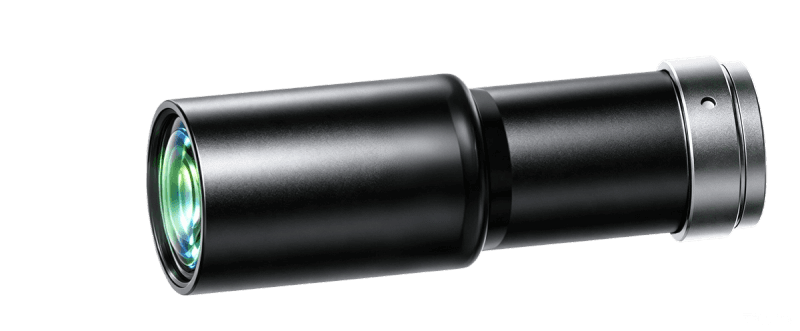

WWT230-05-117S industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.5 |
|---|---|
| Working Distance(mm) | 117 |
| Max Sensor Size | 11(2/3") |
| F-Number | 12 |
| Distortion(%) | 0.043 |
| MTF30 (Image-side)(lp/mm) | 76 |
| Object Resolution(μm) | 16.1 |
| Depth of Field(mm) | 3.8 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 87.9 |
| NA | 0.0208 |
|---|---|
| Filter Thread | M28.0 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
