WWT230-04-26S
WWT230-04-26S

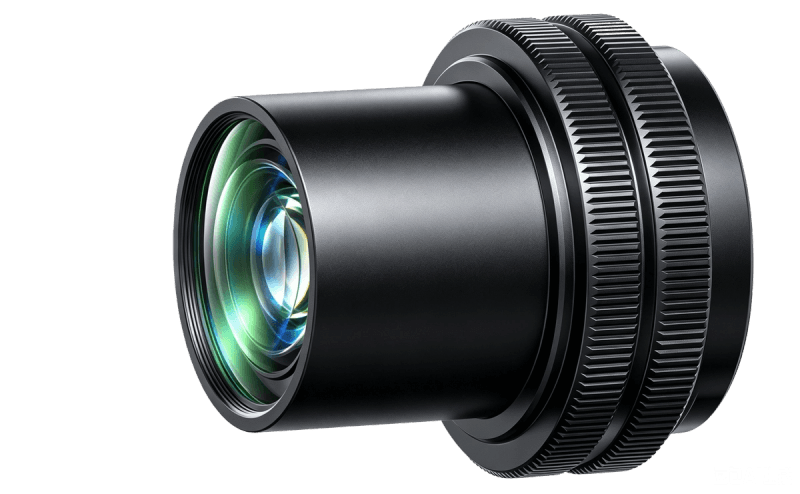

WWT230-04-26S industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.4 |
|---|---|
| Working Distance(mm) | 26 |
| Max Sensor Size | 11(2/3") |
| F-Number | 6 |
| Distortion(%) | 2.25 |
| MTF30 (Image-side)(lp/mm) | 135.4 |
| Object Resolution(μm) | 10.7696 |
| Depth of Field(mm) | 3 |
| Focal Length(mm) | 15.9 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 26.6 |
| NA | 0.0333 |
|---|---|
| Coaxial Light Support | No |
| Iris | No |
