WWT230-04-108-AL
WWT230-04-108-AL

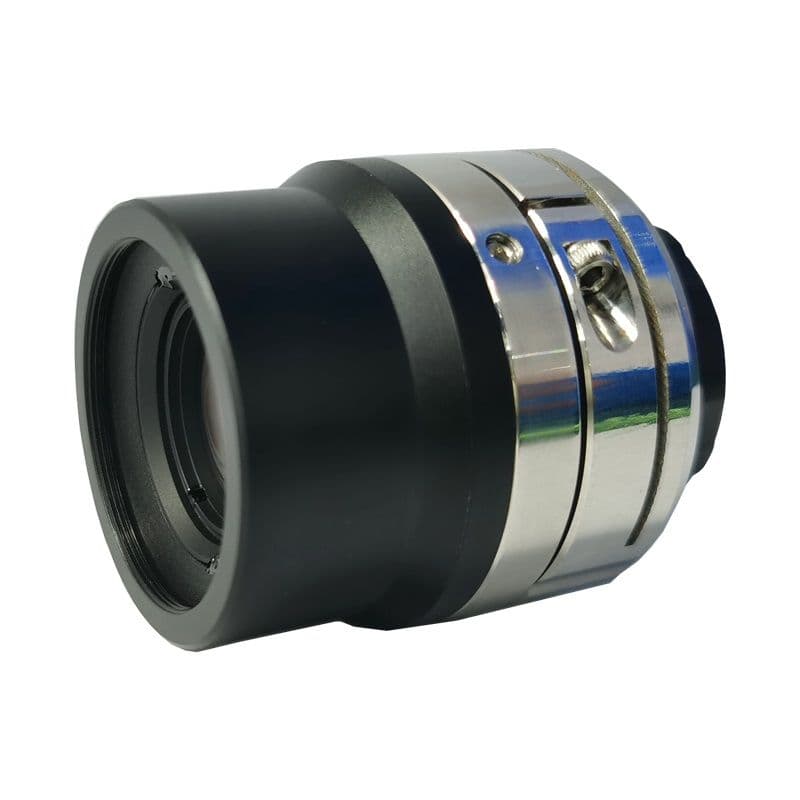

WWT230-04-108-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.4 |
|---|---|
| Working Distance(mm) | 108 |
| Max Sensor Size | 11(2/3") |
| F-Number | 6.0 |
| Distortion(%) | -0.0162 |
| MTF30 (Image-side)(lp/mm) | 166 |
| Object Resolution(μm) | 10.1 |
| Depth of Field(mm) | 3.0 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 46.8 |
| NA | 0.0333 |
|---|---|
| Filter Thread | M30x0.5 |
| Coaxial Light Support | No |
| Iris | No |
