VICO
WWT Industrial Lenses
WWT230-03-39-AL
WWT230-03-39-AL

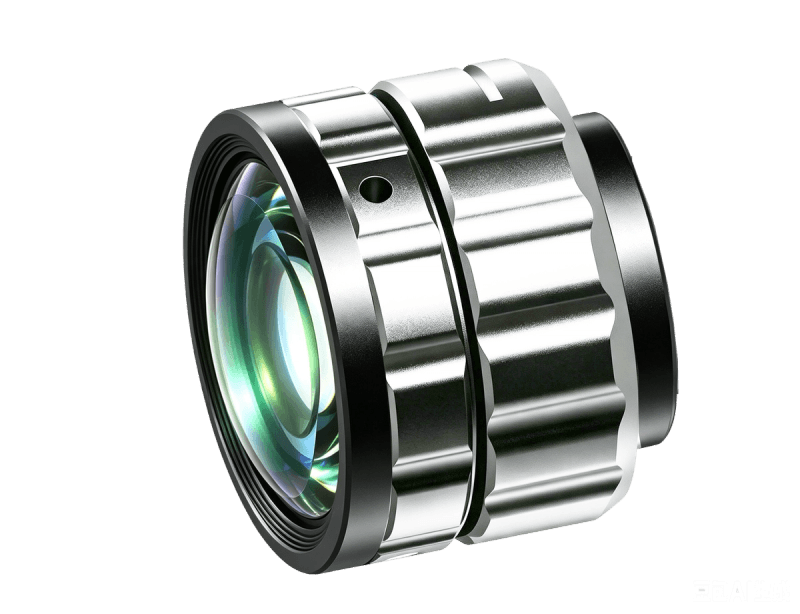

WWT230-03-39-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.3 |
|---|---|
| Working Distance(mm) | 39 |
| Max Sensor Size | 11(2/3") |
| F-Number | 6 |
| Distortion(%) | -0.2572 |
| MTF30 (Image-side)(lp/mm) | 119.8 |
| Object Resolution(μm) | 13.4 |
| Depth of Field(mm) | 5.3 |
| Focal Length(mm) | 15.89 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 25.9 |
| NA | 0.025 |
|---|---|
| Filter Thread | M30.0 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
