WWT Industrial Lenses
WWT230-03-240S
WWT230-03-240S

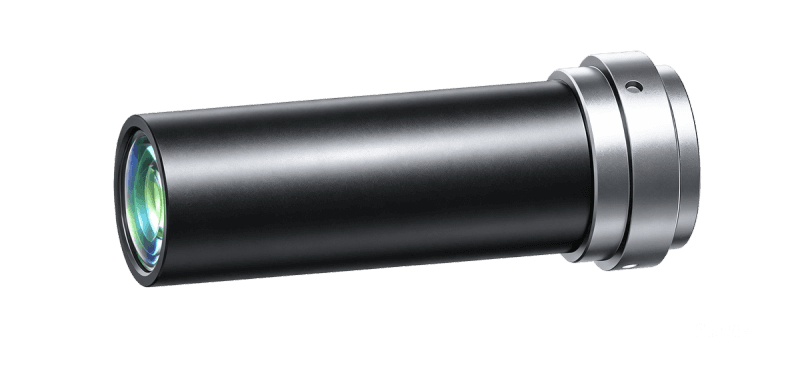

WWT230-03-240S industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.3 |
|---|---|
| Working Distance(mm) | 240 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 8 |
| Distortion(%) | 0.36 |
| MTF30 (Image-side)(lp/mm) | 81.3 |
| Object Resolution(μm) | 19. 1 |
| Depth of Field(mm) | 7.1 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 73.5 |
| NA | 0.0187 |
|---|---|
| Filter Thread | M21x0.5 |
| Coaxial Light Support | No |
| Iris | No |
