WWT230-03-105-AL
WWT230-03-105-AL

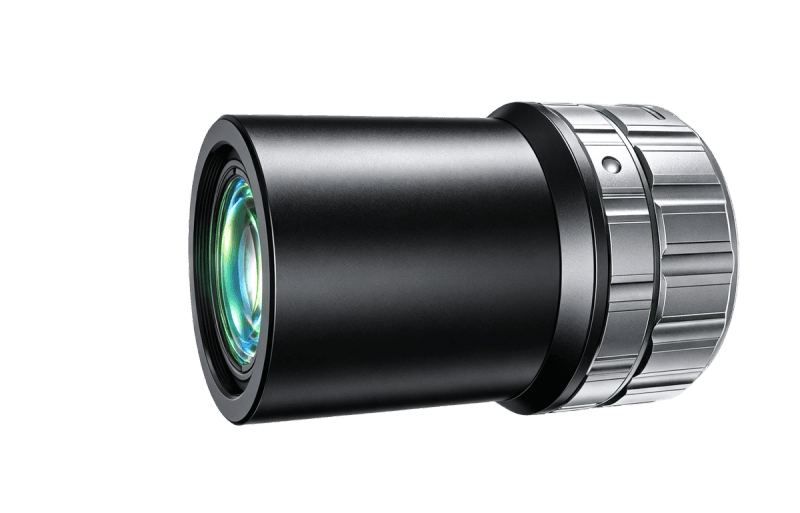

WWT230-03-105-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.3 |
|---|---|
| Working Distance(mm) | 105 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 11.4 |
| Distortion(%) | 0.02 |
| MTF30 (Image-side)(lp/mm) | 86 |
| Object Resolution(μm) | 25.6 |
| Depth of Field(mm) | 10.1 |
| Focal Length(mm) | 36.61 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 75.45 |
| NA | 0.01312 |
|---|---|
| Filter Thread | M30.0 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
