VICO
WWT Industrial Lenses

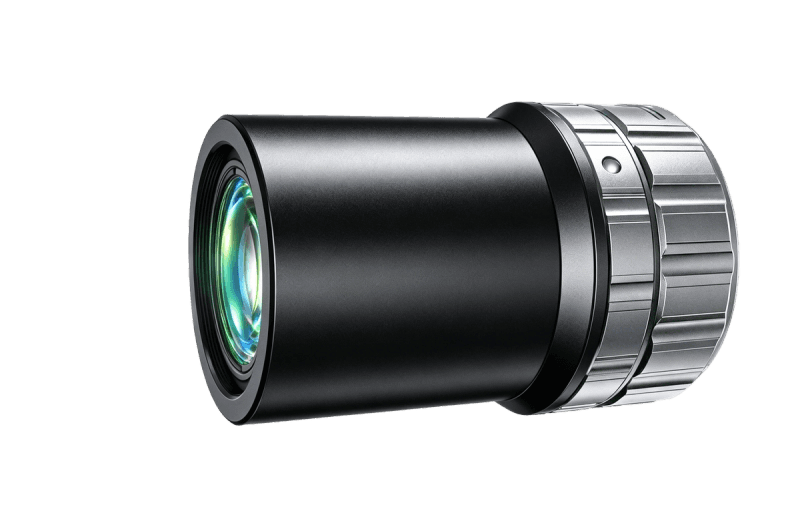

WWT230-028-195-AL
WWT230-028-195-AL
WWT230-028-195-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.28 |
|---|---|
| Working Distance(mm) | 195 |
| Max Sensor Size | 11(2/3") |
| F-Number | 6.5 |
| Distortion(%) | 0.03 |
| MTF30 (Image-side)(lp/mm) | 95 |
| Object Resolution(μm) | 15.6 |
| Depth of Field(mm) | 6.6 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 56.9 |
| NA | 0.02154 |
|---|---|
| Filter Thread | M30x0.5 |
| Coaxial Light Support | No |
| Iris | No |
