WWT Industrial Lenses
WWT230-0268-98S
WWT230-0268-98S

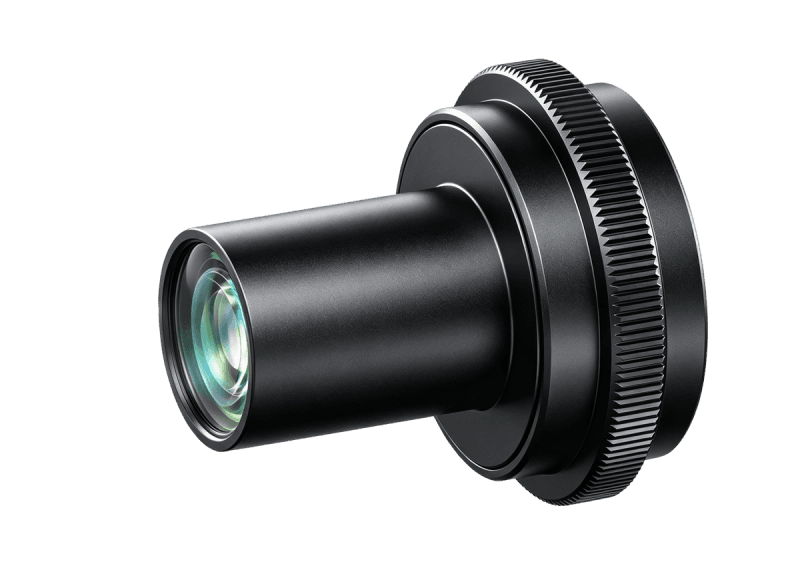

WWT230-0268-98S industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.268 |
|---|---|
| Working Distance(mm) | 98 |
| Max Sensor Size | 11(2/3") |
| F-Number | 6.48 |
| Distortion(%) | 0.23 |
| MTF30 (Image-side)(lp/mm) | 106.6 |
| Object Resolution(μm) | 16.3 |
| Depth of Field(mm) | 7.2 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 31.9 |
| Object Field of View(Φmm) | 41 |
|---|---|
| NA | 0.0206 |
| Filter Thread | M14 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
