VICO
WWT Industrial Lenses

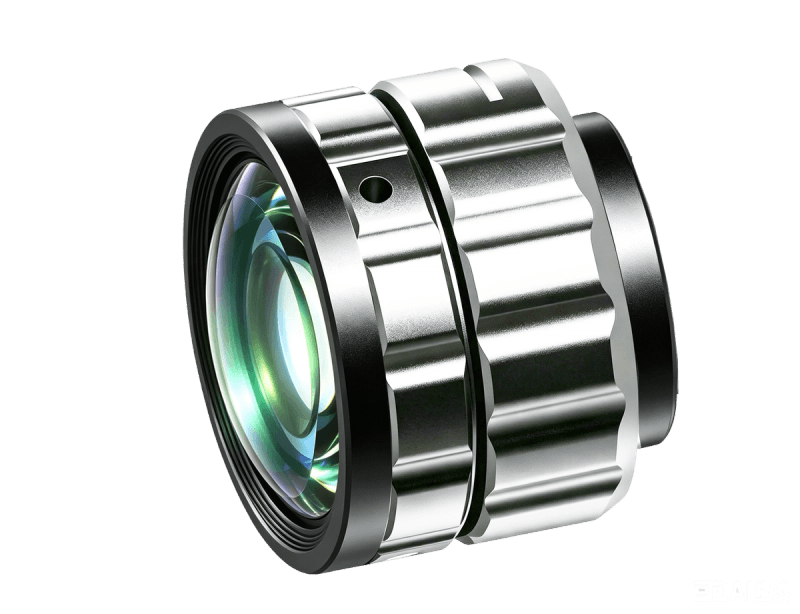

WWT230-025-115-AL
WWT230-025-115-AL
WWT230-025-115-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.25 |
|---|---|
| Working Distance(mm) | 115 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 6.5 |
| Distortion(%) | 0.2 |
| MTF30 (Image-side)(lp/mm) | 125 |
| Object Resolution(μm) | 17.5 |
| Depth of Field(mm) | 8.3 |
| Focal Length(mm) | 24.92 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 21.7 |
| NA | 0.01922 |
|---|---|
| Filter Thread | No internal thread |
| Coaxial Light Support | No |
| Iris | No |
