VICO
WWT Industrial Lenses

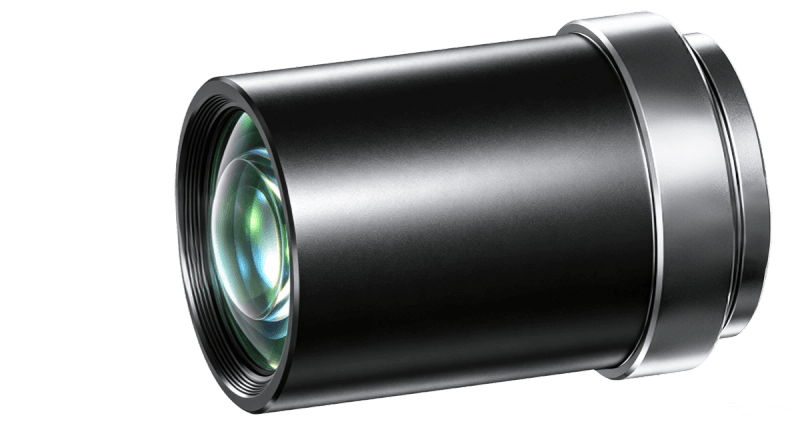

WWT230-02-194S
WWT230-02-194S
WWT230-02-194S industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.2 |
|---|---|
| Working Distance(mm) | 194 |
| Max Sensor Size | 11(2/3") |
| F-Number | 5.6 |
| Distortion(%) | 0.13 |
| MTF30 (Image-side)(lp/mm) | 166 |
| Object Resolution(μm) | 18.9 |
| Depth of Field(mm) | 11.2 |
| Focal Length(mm) | 35.52 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 39.1 |
| NA | 0.01777 |
|---|---|
| Filter Thread | M24.0 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
