VICO
WWT Industrial Lenses
WWT230-018-150-AL
WWT230-018-150-AL

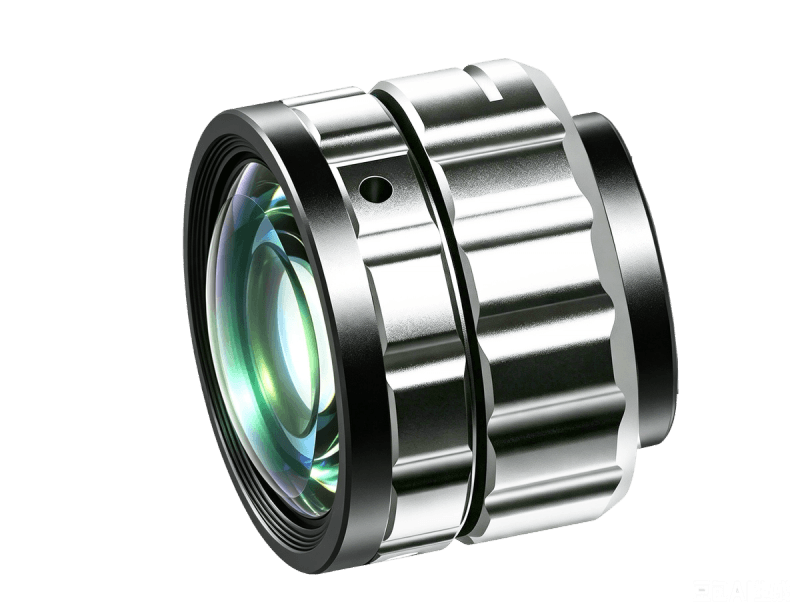

WWT230-018-150-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.18 |
|---|---|
| Working Distance(mm) | 150 |
| Max Sensor Size | 11(2/3") |
| F-Number | 5.6 |
| Distortion(%) | 0.15 |
| MTF30 (Image-side)(lp/mm) | 110 |
| Object Resolution(μm) | 20.8 |
| Depth of Field(mm) | 13.8 |
| Focal Length(mm) | 24.97 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 25 |
| NA | 0.01611 |
|---|---|
| Filter Thread | M30.0x0.5-6H |
| Coaxial Light Support | No |
| Iris | No |
