WWT230-016-100-AL
WWT230-016-100-AL

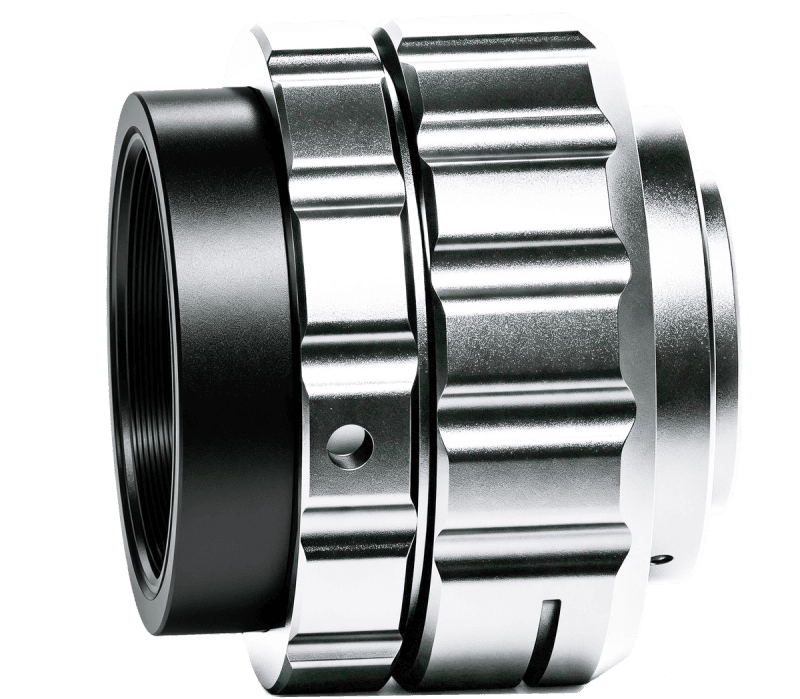

WWT230-016-100-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.16 |
|---|---|
| Working Distance(mm) | 100 |
| Max Sensor Size | 2/3'' |
| F-Number | 6 |
| Distortion(%) | 0.06 |
| MTF30 (Image-side)(lp/mm) | 95.9 |
| Object Resolution(μm) | 26.959 |
| Depth of Field(mm) | 18.8 |
| Focal Length(mm) | 19.5 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 27.1 |
| NA | 0.0133 |
|---|---|
| Filter Thread | M25.0 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
