WWT Industrial Lenses

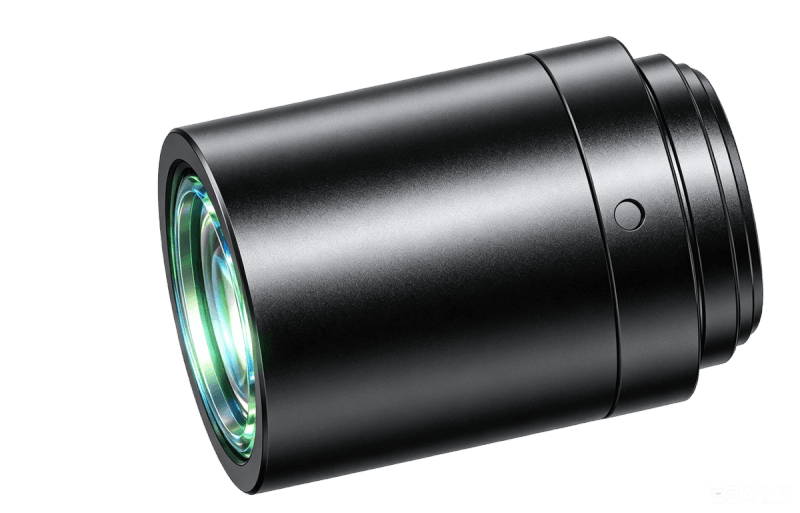

WWT230-015-248S
WWT230-015-248S
WWT230-015-248S industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.15 |
|---|---|
| Working Distance(mm) | 248 |
| Max Sensor Size | 11(2/3") |
| F-Number | 5.6 |
| Distortion(%) | 0.12 |
| MTF30 (Image-side)(lp/mm) | 174.5 |
| Object Resolution(μm) | 24.97 |
| Depth of Field(mm) | 19.8 |
| Focal Length(mm) | 35 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 36.7 |
| NA | 0.0134 |
|---|---|
| Filter Thread | M25.0 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
