VICO
WWT Industrial Lenses
WWT230-015-178-AL
WWT230-015-178-AL

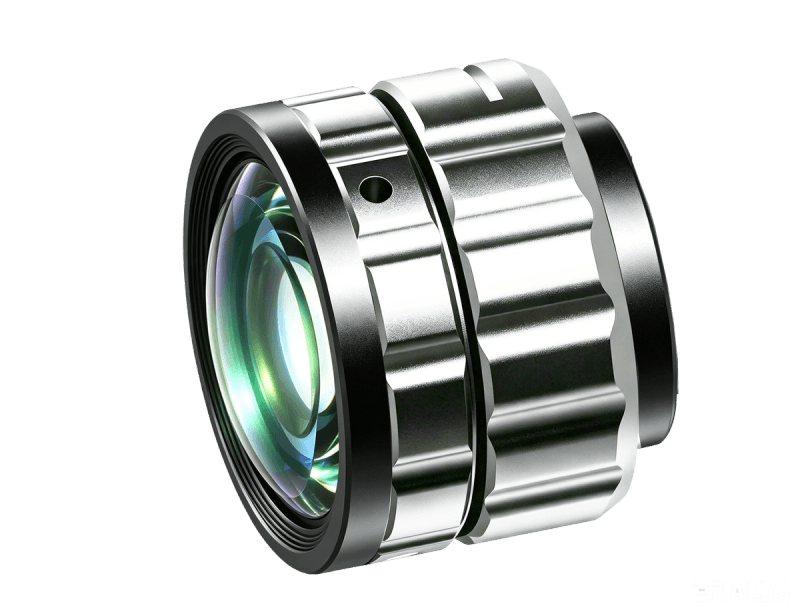

WWT230-015-178-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.15 |
|---|---|
| Working Distance(mm) | 178 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 5.6 |
| Distortion(%) | 0.084 |
| MTF30 (Image-side)(lp/mm) | 162.0 |
| Object Resolution(μm) | 26.8 |
| Depth of Field(mm) | 22.9 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 24.5 |
| NA | 0.0125 |
|---|---|
| Filter Thread | M30x0.5 |
| Coaxial Light Support | No |
| Iris | No |
