VICO
WWT Industrial Lenses
WWT230-0133-400S
WWT230-0133-400S

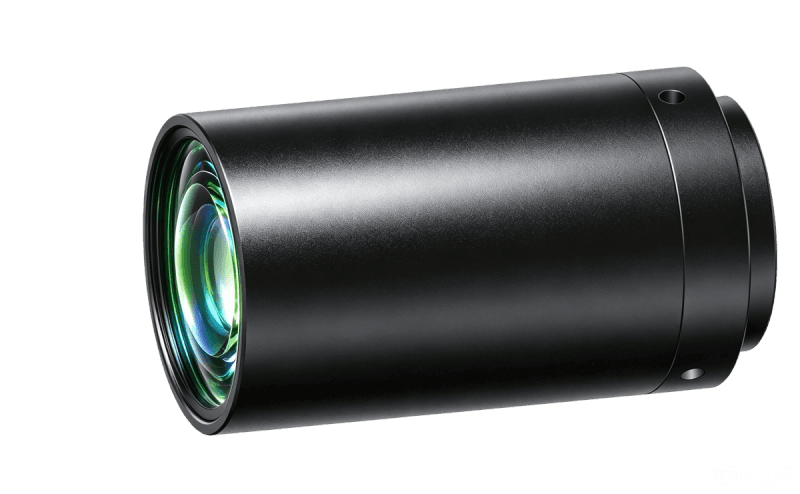

WWT230-0133-400S industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.1 |
|---|---|
| Working Distance(mm) | 400 |
| Max Sensor Size | 11(2/3") |
| F-Number | 6 |
| Telecentricity(°) | Non-telecentric |
| Distortion(%) | 0.25 |
| MTF30 (Image-side)(lp/mm) | 142 |
| Object Resolution(μm) | 30.2 |
| Depth of Field(mm) | 27.1 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 52.4 |
| NA | 0.01111 |
|---|---|
| Filter Thread | M30x0.5 |
| Coaxial Light Support | No |
| Iris | No |
