WWT230-01-360-AL
WWT230-01-360-AL

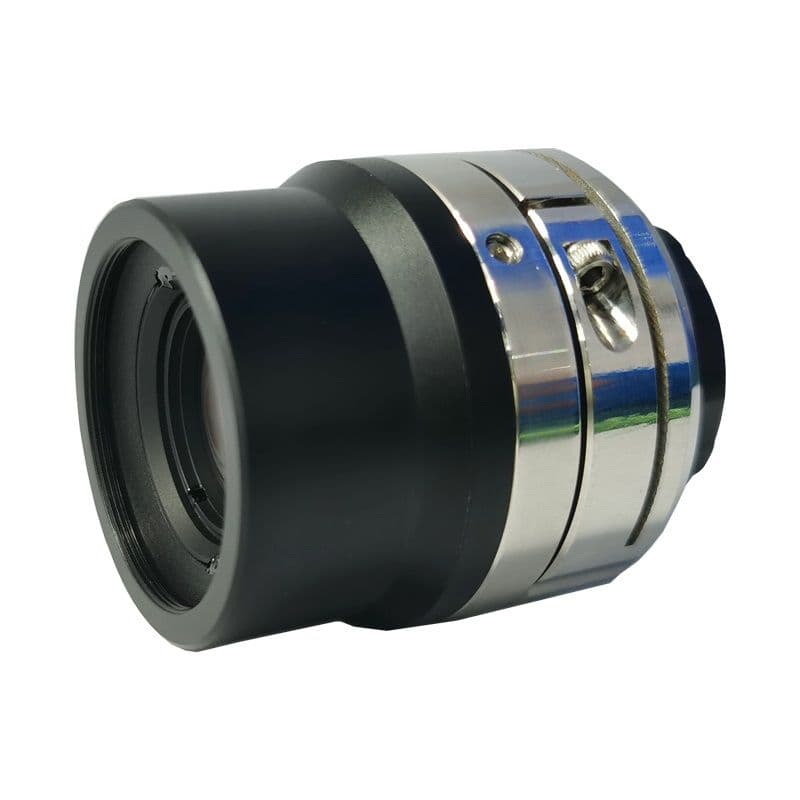

WWT230-01-360-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.1 |
|---|---|
| Working Distance(mm) | 360 |
| Max Sensor Size | 11(2/3") |
| F-Number | 5.6 |
| Distortion(%) | -0.089 |
| MTF30 (Image-side)(lp/mm) | 116 |
| Object Resolution(μm) | 37.6 |
| Depth of Field(mm) | 44.8 |
| Focal Length(mm) | 34.83 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 38.3 |
| NA | 0.00893 |
|---|---|
| Filter Thread | M30.0 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
