WWT Industrial Lenses

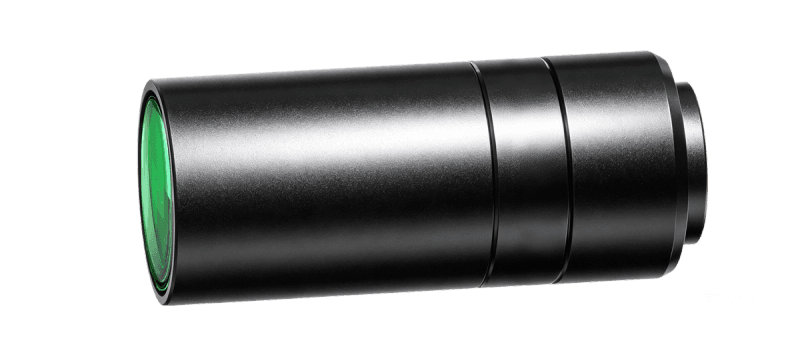

WWT230-01-200-AL
WWT230-01-200-AL
WWT230-01-200-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.1 |
|---|---|
| Working Distance(mm) | 200 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 5.6 |
| Distortion(%) | 0.1 |
| MTF30 (Image-side)(lp/mm) | 128 |
| Object Resolution(μm) | 37.2519 |
| Depth of Field(mm) | 44.6 |
| Focal Length(mm) | 25 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 83 |
| NA | 0.0089 |
|---|---|
| Coaxial Light Support | No |
| Iris | No |
