WWT Industrial Lenses
WWT230-0093-500-AL
WWT230-0093-500-AL

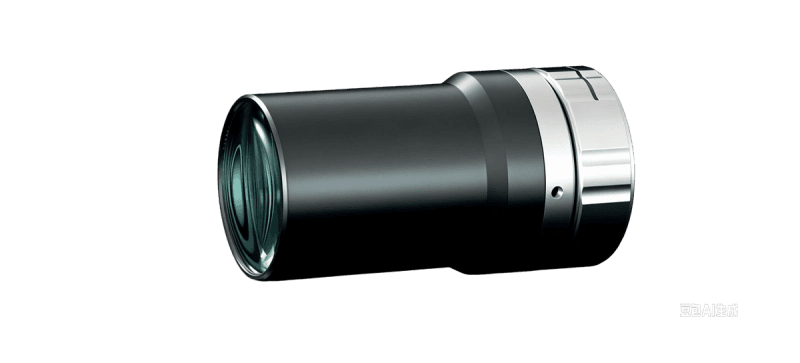

WWT230-0093-500-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.093 |
|---|---|
| Working Distance(mm) | 500 |
| Max Sensor Size | 11.0(2/3") |
| F-Number | 4 |
| Distortion(%) | 0.08 |
| MTF30 (Image-side)(lp/mm) | 116 |
| Object Resolution(μm) | 28.7 |
| Depth of Field(mm) | 37.0 |
| Focal Length(mm) | 46.47 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 73.3 |
| NA | 0.01167 |
|---|---|
| Filter Thread | M30.0 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
