WWT Industrial Lenses

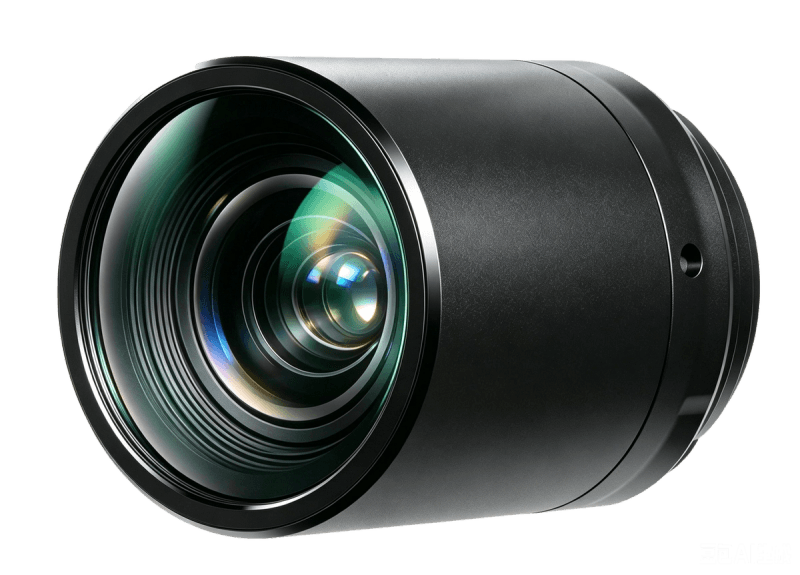

WWT230-0064-550S
WWT230-0064-550S
WWT230-0064-550S industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.064 |
|---|---|
| Working Distance(mm) | 550 |
| Max Sensor Size | 11(2/3") |
| F-Number | 5.6 |
| Telecentricity(°) | Non-telecentric |
| Distortion(%) | 0.09 |
| MTF30 (Image-side)(lp/mm) | 177 |
| Depth of Field(mm) | 109.4 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 34.7 |
| NA | 0.00569 |
|---|---|
| Filter Thread | M30x0.5 |
| Coaxial Light Support | No |
| Iris | No |
