WWT230-0055-650-AL
WWT230-0055-650-AL

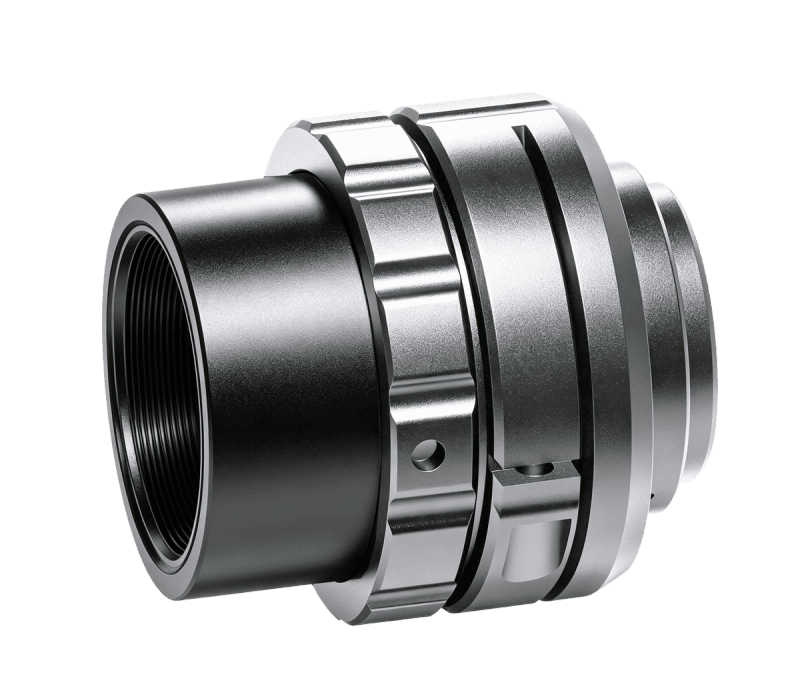

WWT230-0055-650-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.055 |
|---|---|
| Working Distance(mm) | 650 |
| Max Sensor Size | 2/3" |
| F-Number | 5.6 |
| Distortion(%) | 0.07 |
| MTF30 (Image-side)(lp/mm) | 151.6 |
| Object Resolution(μm) | 68.4342 |
| Depth of Field(mm) | 148.5 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 34.3 |
| NA | 0.0049 |
|---|---|
| Filter Thread | M25.0 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
