WWT121-10-50S
WWT121-10-50S

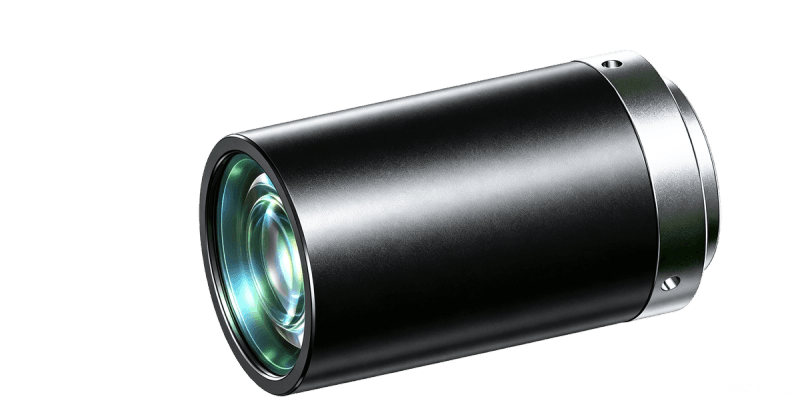

WWT121-10-50S industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.0 |
|---|---|
| Working Distance(mm) | 50 |
| Max Sensor Size | 19.2(1.2") |
| F-Number | 8.0 |
| Distortion(%) | 0.8 |
| MTF30 (Image-side)(lp/mm) | 70 |
| Object Resolution(μm) | 5.5 |
| Depth of Field(mm) | 0.6 |
| Focal Length(mm) | 48.67 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 76.2 |
| NA | 0.06146 |
|---|---|
| Filter Thread | No internal thread |
| Coaxial Light Support | No |
| Iris | No |
