VICO
WWT Industrial Lenses
WWT121-05-37-AL
WWT121-05-37-AL

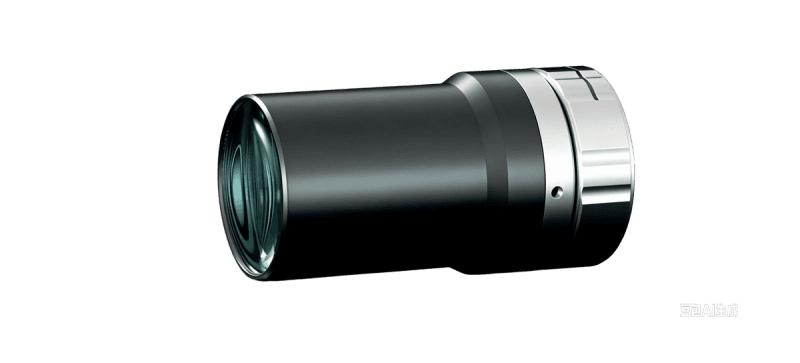

WWT121-05-37-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.5 |
|---|---|
| Working Distance(mm) | 37 |
| Max Sensor Size | 19.2(1.2") |
| F-Number | 8.0 |
| Distortion(%) | 0.42 |
| MTF30 (Image-side)(lp/mm) | 70 |
| Object Resolution(μm) | 10.7 |
| Depth of Field(mm) | 2.6 |
| Focal Length(mm) | 24.80 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 65.7 |
| NA | 0.0313 |
|---|---|
| Filter Thread | M30.0 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
