WWT Industrial Lenses
WWT121-045-155-AL
WWT121-045-155-AL

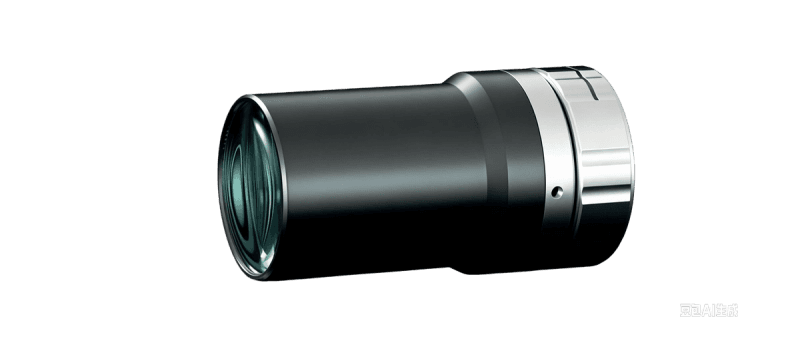

WWT121-045-155-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.45 |
|---|---|
| Working Distance(mm) | 155 |
| Max Sensor Size | 19.2(1.2") |
| F-Number | 6 |
| Distortion(%) | 0.48 |
| MTF30 (Image-side)(lp/mm) | 121.5 |
| Object Resolution(μm) | 8.8894 |
| Depth of Field(mm) | 2.4 |
| Focal Length(mm) | 70.1 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 71.6 |
| NA | 0.0371 |
|---|---|
| Filter Thread | M30x0.5-6H |
| Coaxial Light Support | No |
| Iris | No |
