WWT Industrial Lenses
WWT121-04-49-AL
WWT121-04-49-AL

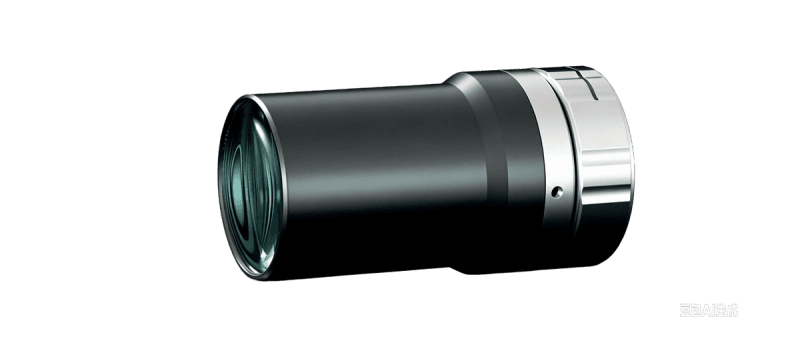

WWT121-04-49-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.4 |
|---|---|
| Working Distance(mm) | 49 |
| Max Sensor Size | 19.2(1.2") |
| F-Number | 7.2 |
| Distortion(%) | 0.46 |
| MTF30 (Image-side)(lp/mm) | 78 |
| Object Resolution(μm) | 12.1 |
| Depth of Field(mm) | 3.6 |
| Focal Length(mm) | 24.87 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 63.7 |
| NA | 0.0278 |
|---|---|
| Coaxial Light Support | No |
| Iris | No |
