WWT121-032-186-AL
WWT121-032-186-AL

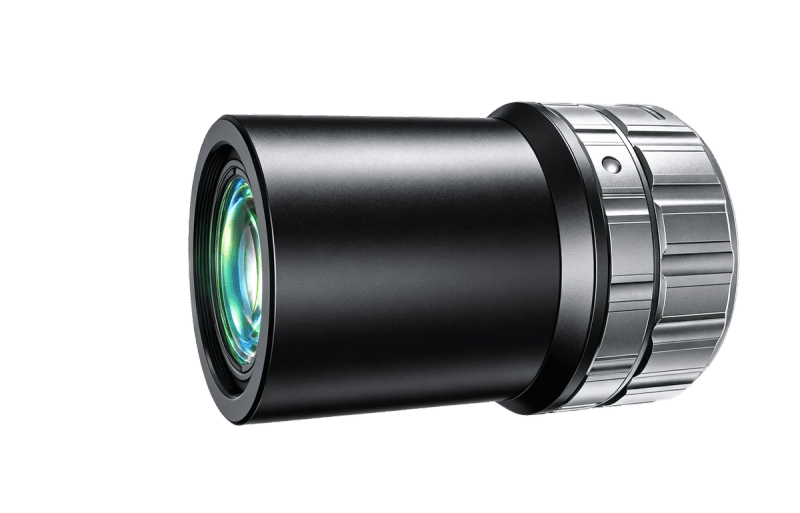

WWT121-032-186-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.32 |
|---|---|
| Working Distance(mm) | 186 |
| Max Sensor Size | 19.2(1.2") |
| F-Number | 6.0 |
| Distortion(%) | 0.05 |
| MTF30 (Image-side)(lp/mm) | 152 |
| Object Resolution(μm) | 12.6 |
| Depth of Field(mm) | 4.7 |
| Focal Length(mm) | 54.98 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 63.8 |
| NA | 0.02664 |
|---|---|
| Filter Thread | M30.0 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
