VICO
WWT Industrial Lenses

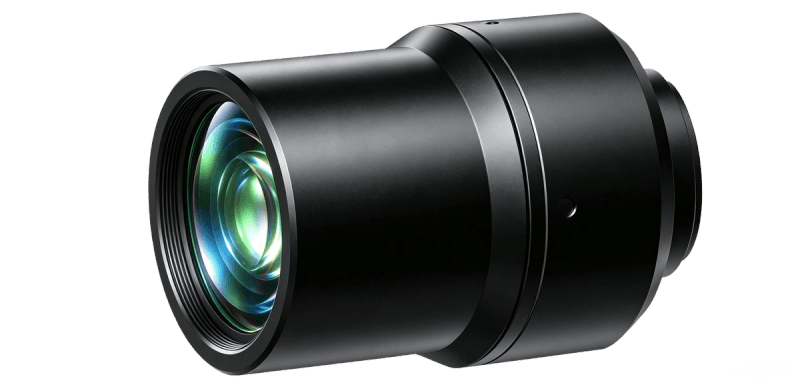

WWT121-023-160S
WWT121-023-160S
WWT121-023-160S industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.23 |
|---|---|
| Working Distance(mm) | 160 |
| Max Sensor Size | 19.2(1.2") |
| F-Number | 6.0 |
| Distortion(%) | 1.66 |
| MTF30 (Image-side)(lp/mm) | 134 |
| Object Resolution(μm) | 17.5 |
| Depth of Field(mm) | 9.1 |
| Focal Length(mm) | 36.88 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 49 |
| NA | 0.0191 |
|---|---|
| Filter Thread | M30.0 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
