WWT121-02-276-AL
WWT121-02-276-AL

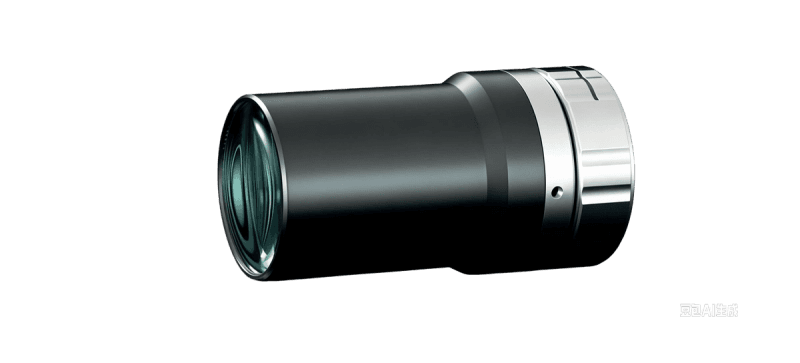

WWT121-02-276-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.2 |
|---|---|
| Working Distance(mm) | 276 |
| Max Sensor Size | 19.2(1.2") |
| F-Number | 5.6 |
| Distortion(%) | 0.05 |
| MTF30 (Image-side)(lp/mm) | 168 |
| Object Resolution(μm) | 18.7 |
| Depth of Field(mm) | 11.2 |
| Focal Length(mm) | 52.34 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 57.5 |
| NA | 0.01791 |
|---|---|
| Filter Thread | M30.0 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
