VICO
WWT Industrial Lenses

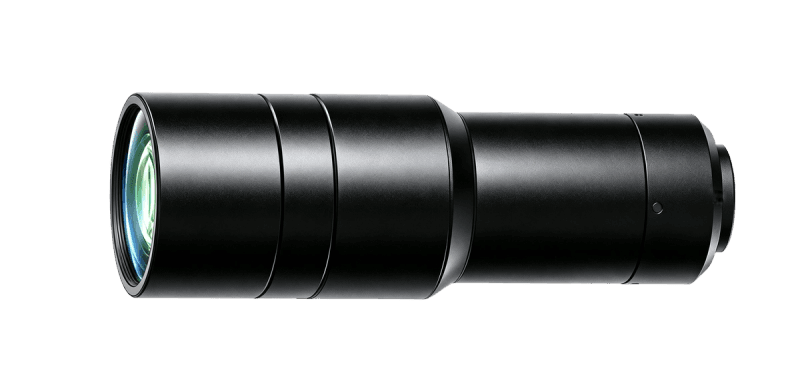

WWT110-04-180S
WWT110-04-180S
WWT110-04-180S industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.4 |
|---|---|
| Working Distance(mm) | 180 |
| Max Sensor Size | 16(1") |
| F-Number | 6.5 |
| Distortion(%) | 0.32 |
| MTF30 (Image-side)(lp/mm) | 104 |
| Object Resolution(μm) | 10.9 |
| Depth of Field(mm) | 3.3 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 138.4 |
| NA | 0.030769 |
|---|---|
| Filter Thread | M44.0 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
