WWT110-009-400-AL
WWT110-009-400-AL

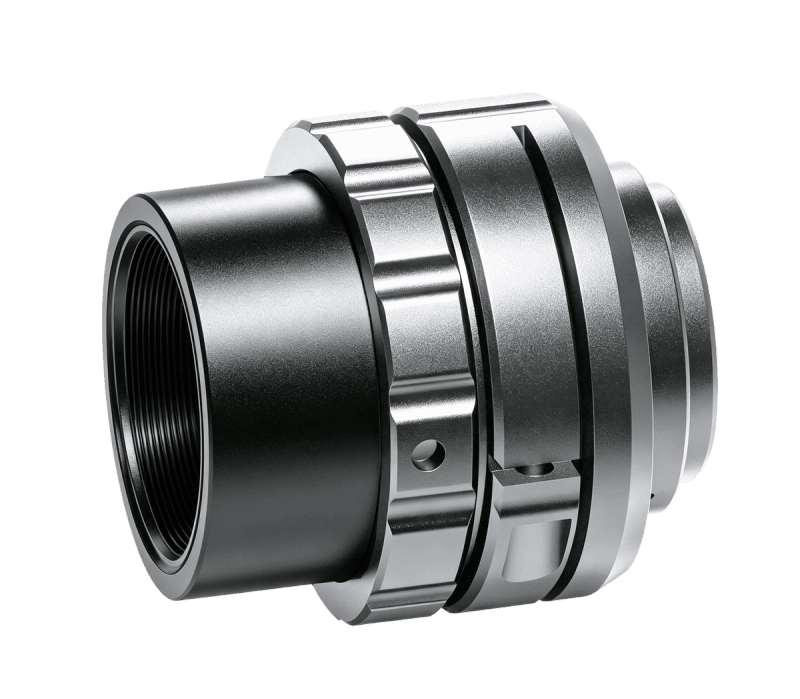

WWT110-009-400-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.09 |
|---|---|
| Working Distance(mm) | 400 |
| Max Sensor Size | 16(1") |
| F-Number | 4 |
| Distortion(%) | 0.29 |
| MTF30 (Image-side)(lp/mm) | 107.4 |
| Object Resolution(μm) | 29.824 |
| Depth of Field(mm) | 39.4 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 40.5 |
| Object Field of View(Φmm) | 177.8 |
|---|---|
| NA | 0.0112 |
| Filter Thread | M30x0.5 |
| Coaxial Light Support | No |
| Iris | No |
