VICO
C-Mount High Resolution Telecentric Lenses
WWK70-108C-111V3
WWK70-108C-111V3

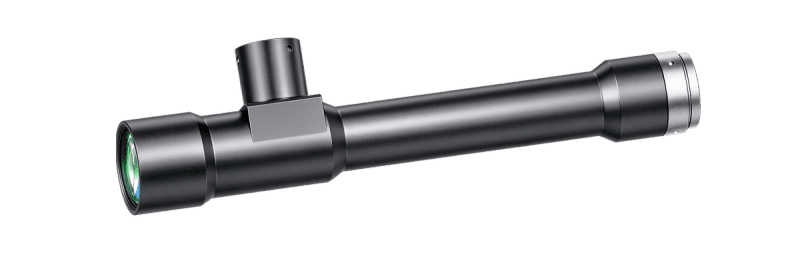

WWK70-108C-111V3 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 7.0 |
|---|---|
| Working Distance(mm) | 108±2 |
| Max Sensor Size | 18.0(1.1") |
| F-Number | 34.9 |
| Telecentricity(°) | 0.03 |
| Distortion(%) | 0.08 |
| MTF30 (Image-side)(lp/mm) | 26 |
| Object Resolution(μm) | 3.4 |
| Depth of Field(mm) | ±0.03@F34.9 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 192.0 |
| NA | 0.1 |
|---|---|
| Coaxial Light Support | Yes |
| Iris | No |
