C-Mount High Resolution Telecentric Lenses

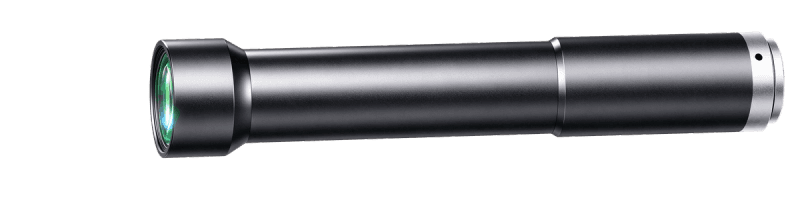

WWK40-100-111
WWK40-100-111
WWK40-100-111 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 4 |
|---|---|
| Working Distance(mm) | 100 |
| Max Sensor Size | 18.0(1.1 |
| F-Number | 26.5 |
| Telecentricity(°) | <0.01 |
| Distortion(%) | <0.05 |
| MTF30 (Image-side)(lp/mm) | 35 |
| Depth of Field(mm) | ±0.07@F26.5 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 187.0 |
| NA | 0.07384 |
|---|---|
| Filter Thread | M32 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
