C-Mount High Resolution Telecentric Lenses
WWK35-108C-111
WWK35-108C-111

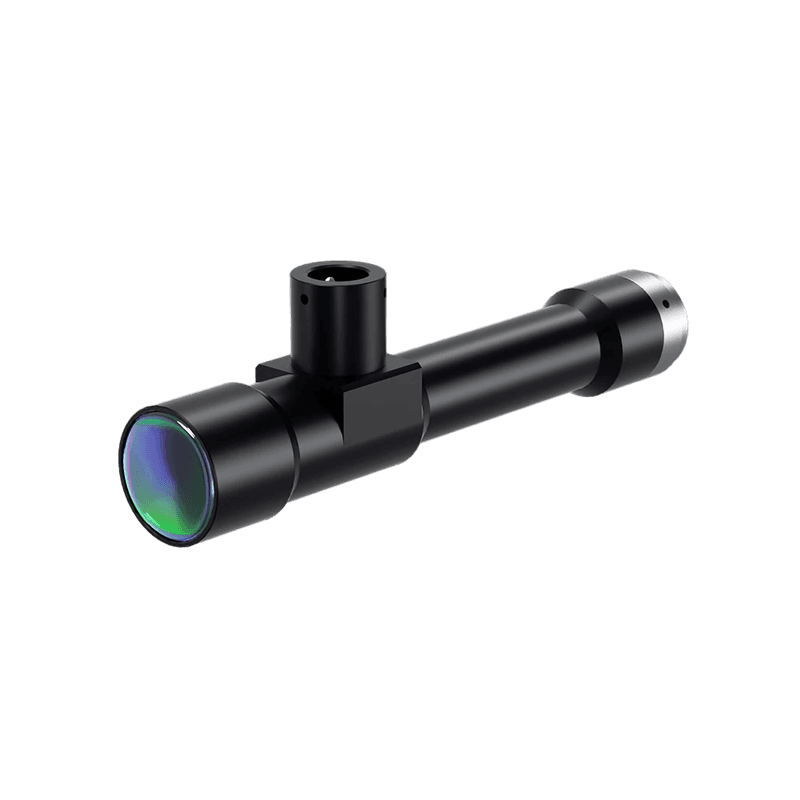

WWK35-108C-111 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 3.5 |
|---|---|
| Working Distance(mm) | 108±2 |
| Max Sensor Size | 18(1.1") |
| F-Number | 23.3 |
| Telecentricity(°) | <0.08 |
| Distortion(%) | <0.05 |
| MTF30 (Image-side)(lp/mm) | >40 |
| Depth of Field(mm) | ±0.08@F23.3 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 182.7 |
| NA | 0.0752 |
|---|---|
| Filter Thread | M32.0x0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
