C-Mount High Resolution Telecentric Lenses

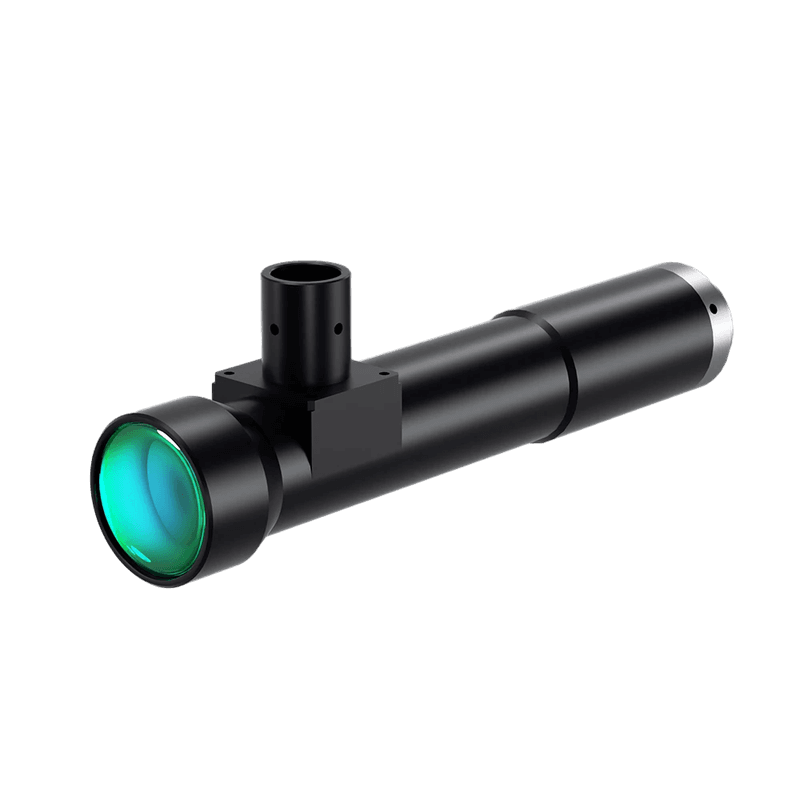

WWK30-110CP-111
WWK30-110CP-111
WWK30-110CP-111 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 3 |
|---|---|
| Working Distance(mm) | 110 |
| Max Sensor Size | 18(1.1") |
| F-Number | 20 |
| Telecentricity(°) | 0.11 |
| Distortion(%) | 0.03 |
| MTF30 (Image-side)(lp/mm) | 41.5 |
| Object Resolution(μm) | 4.8 |
| Depth of Field(mm) | 0.2 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 167.7 |
| NA | 0.0739 |
|---|---|
| Working Wavelength(nm) | 420~660 |
| Filter Thread | M32 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
