VICO
C-Mount High Resolution Telecentric Lenses

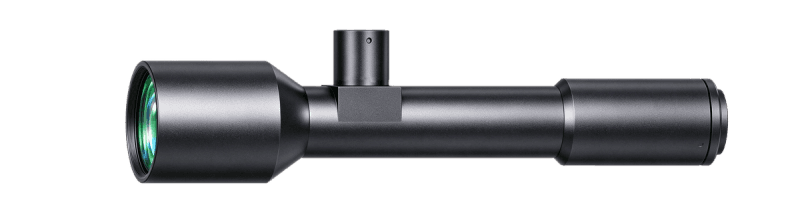

WWK20-150C-111
WWK20-150C-111
WWK20-150C-111 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 2 |
|---|---|
| Working Distance(mm) | 150 |
| Max Sensor Size | 18(1.1") |
| F-Number | 14.1 |
| Telecentricity(°) | 0.02 |
| Distortion(%) | 0.1 |
| MTF30 (Image-side)(lp/mm) | 55.5 |
| Object Resolution(μm) | 5.0567 |
| Depth of Field(mm) | 0.3 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 232.5 |
| NA | 0.0709 |
|---|---|
| Coaxial Light Support | Yes |
| Iris | No |
