VICO
C-Mount High Resolution Telecentric Lenses
WWK20-110-111-G
WWK20-110-111-G

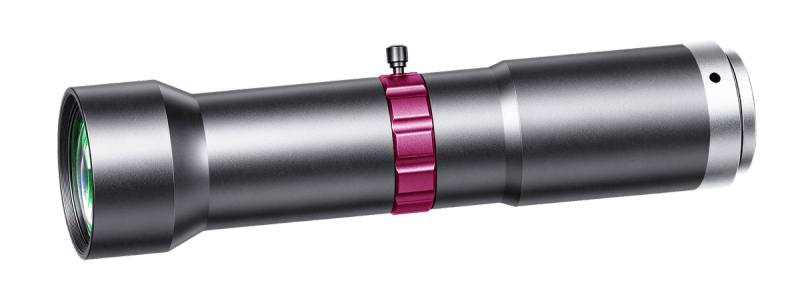

WWK20-110-111-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 2 |
|---|---|
| Working Distance(mm) | 110 |
| Max Sensor Size | 18.0(1.1"） |
| F-Number | 13.5-32 |
| Telecentricity(°) | 0.07 |
| Distortion(%) | 0.07 |
| MTF30 (Image-side)(lp/mm) | 60-31 |
| Object Resolution(μm) | 4.6-10.8 |
| Depth of Field(mm) | 0.3-0.6 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 133.2 |
| NA | 0.07372-0.03117 |
|---|---|
| Filter Thread | M32 P0.5 |
| Coaxial Light Support | No |
| Iris | Yes |
