VICO
C-Mount High Resolution Telecentric Lenses

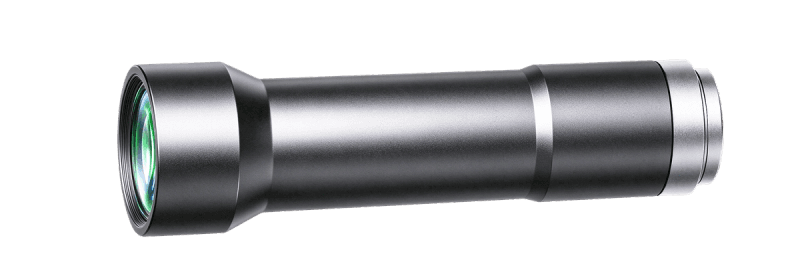

WWK15-122-111
WWK15-122-111
WWK15-122-111 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.5 |
|---|---|
| Working Distance(mm) | 122 |
| Max Sensor Size | 18.0(1.1") |
| F-Number | 26.9 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.2 |
| MTF30 (Image-side)(lp/mm) | 35 |
| Depth of Field(mm) | 1.0 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 115.5 |
| NA | 0.02774 |
|---|---|
| Filter Thread | M32x0.5 |
| Coaxial Light Support | No |
| Iris | No |
