VICO
C-Mount High Resolution Telecentric Lenses
WWK15-110C-111-G
WWK15-110C-111-G

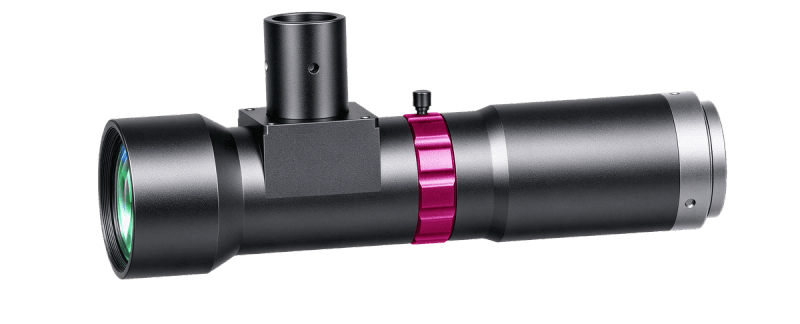

WWK15-110C-111-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.5 |
|---|---|
| Working Distance(mm) | 110 |
| Max Sensor Size | 18.0(1.1") |
| F-Number | 10.0-32 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.05 |
| MTF30 (Image-side)(lp/mm) | 80-30 |
| Depth of Field(mm) | 0.4-1.1 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 128.8 |
| NA | 0.074448-0.02342 |
|---|---|
| Filter Thread | M32 P0.5 |
| Coaxial Light Support | Yes |
| Iris | Yes |
