VICO
C-Mount High Resolution Telecentric Lenses
WWK1375-150C-118

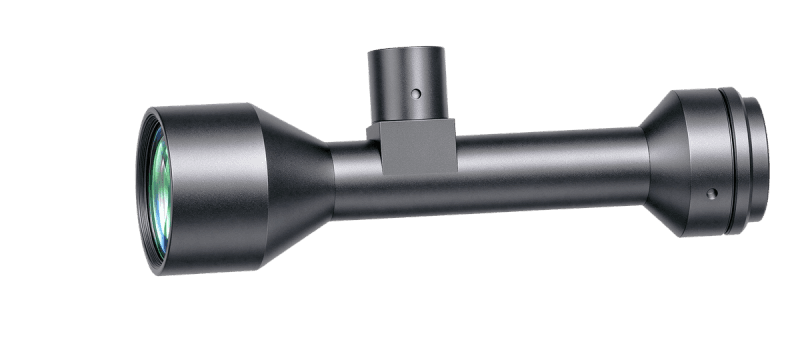

WWK1375-150C-118
WWK1375-150C-118 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.375 |
|---|---|
| Working Distance(mm) | 150 |
| Max Sensor Size | 9.2(1/1.8") |
| F-Number | 18 |
| Telecentricity(°) | 0.06 |
| Distortion(%) | 0.25 |
| MTF30 (Image-side)(lp/mm) | 49 |
| Object Resolution(μm) | 8.8 |
| Depth of Field(mm) | 0.3 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 121.7 |
| NA | 0.03817 |
|---|---|
| Filter Thread | M32 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
