VICO
C-Mount High Resolution Telecentric Lenses
WWK13-98-111-M42

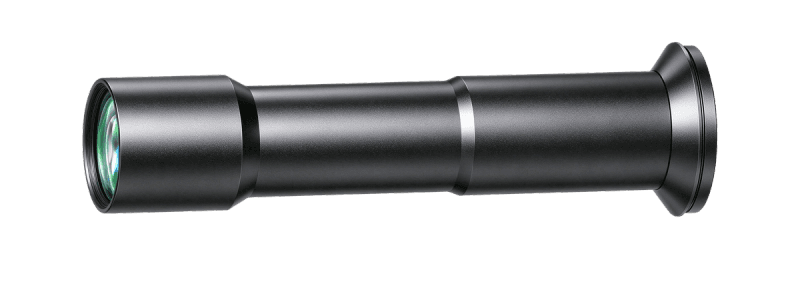

WWK13-98-111-M42
WWK13-98-111-M42 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.3 |
|---|---|
| Working Distance(mm) | 98 |
| Max Sensor Size | 18(1.1") |
| F-Number | 8.4 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.1 |
| MTF30 (Image-side)(lp/mm) | 80 |
| Depth of Field(mm) | ±0.19@F8.4 |
Mechanical Specifications
| Camera Mount | M42 |
|---|---|
| Total Length(mm) | 151.6 |
| Object Field of View(Φmm) | 13.85 |
|---|---|
| NA | 0.07681 |
| Filter Thread | M32x0.5 |
| Coaxial Light Support | No |
| Iris | No |
