VICO
C-Mount High Resolution Telecentric Lenses
WWK13-98-111-G
WWK13-98-111-G

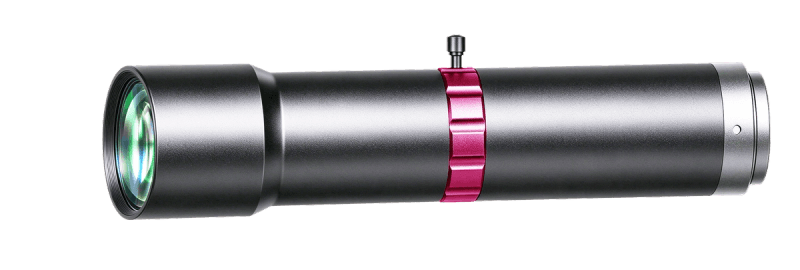

WWK13-98-111-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.3 |
|---|---|
| Working Distance(mm) | 98 |
| Max Sensor Size | 18.0(1.1") |
| F-Number | 8.4-32 |
| Telecentricity(°) | 0.04 |
| Distortion(%) | 0.04 |
| MTF30 (Image-side)(lp/mm) | 66-30 |
| Object Resolution(μm) | 4.35-16.5 |
| Depth of Field(mm) | 0.398-1.515 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 146.1 |
| NA | 0.0772-0.0203 |
|---|---|
| Filter Thread | M32x0.5 |
| Coaxial Light Support | No |
| Iris | Yes |
