C-Mount High Resolution Telecentric Lenses

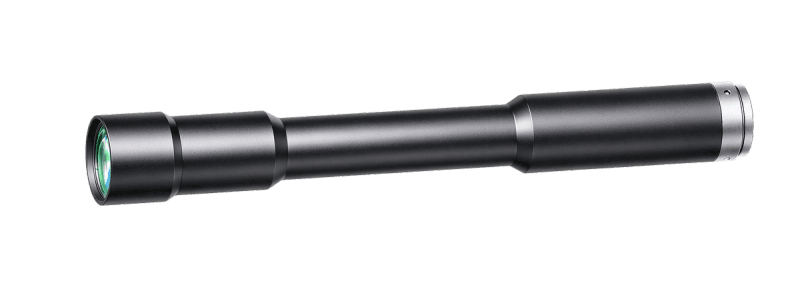

WWK100-108-111V3
WWK100-108-111V3
WWK100-108-111V3 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 10 |
|---|---|
| Working Distance(mm) | 108 |
| Max Sensor Size | 18.4(1.1") |
| F-Number | 52.5 |
| Telecentricity(°) | 0.02 |
| Distortion(%) | 0.08 |
| MTF30 (Image-side)(lp/mm) | 15 |
| Depth of Field(mm) | 0.04 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 238.8 |
| Object Field of View(Φmm) | 1.84 |
|---|---|
| NA | 0.1 |
| Filter Thread | M30x0.5 |
| Coaxial Light Support | No |
| Iris | No |
