VICO
C-Mount High Resolution Telecentric Lenses
WWK10-110CP-111V3-T90
WWK10-110CP-111V3-T90

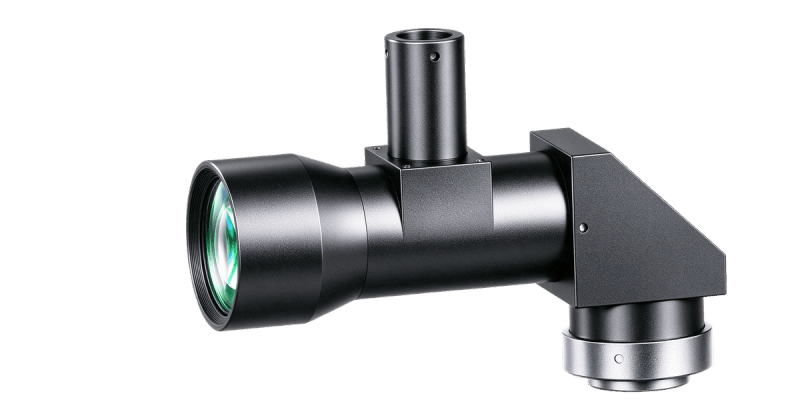

WWK10-110CP-111V3-T90 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.0 |
|---|---|
| Working Distance(mm) | 110 |
| Max Sensor Size | 18.4(1.1") |
| F-Number | 7 |
| Telecentricity(°) | 0.06 |
| Distortion(%) | 0.06 |
| MTF30 (Image-side)(lp/mm) | 130 |
| Object Resolution(μm) | 4.7 |
| Depth of Field(mm) | ±0.3@F7 |
Mechanical Specifications
| Camera Mount | C |
|---|
| NA | 0.07125 |
|---|---|
| Filter Thread | M41 P0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
