C-Mount High Resolution Telecentric Lenses

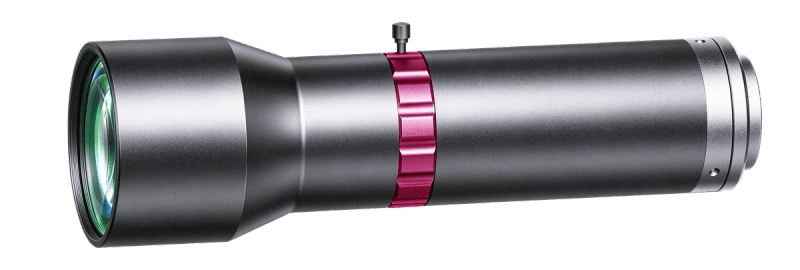

WWK10-110-111V3-G
WWK10-110-111V3-G
WWK10-110-111V3-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.0 |
|---|---|
| Working Distance(mm) | 110 |
| Max Sensor Size | 18.4(1.1") |
| F-Number | 7-32 |
| Telecentricity(°) | 0.06 |
| Distortion(%) | 0.1 |
| MTF30 (Image-side)(lp/mm) | 128 |
| Depth of Field(mm) | 0.6-2.6 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 142.6 |
| NA | 0.07125-0.01562 |
|---|---|
| Filter Thread | M41 P0.5 |
| Coaxial Light Support | No |
| Iris | Yes |
