VICO
C-Mount High Resolution Telecentric Lenses
WWK081-188-111V3
WWK081-188-111V3

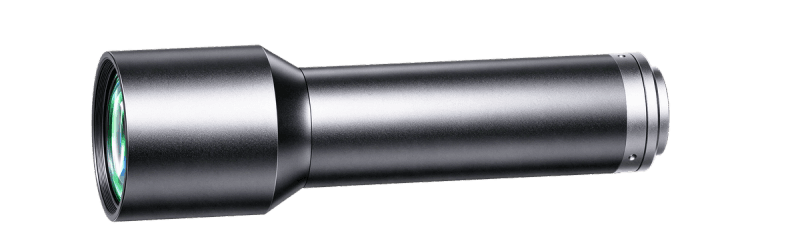

WWK081-188-111V3 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.81 |
|---|---|
| Working Distance(mm) | 188 |
| Max Sensor Size | 18.2(1.1") |
| F-Number | 8.1 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.035 |
| MTF30 (Image-side)(lp/mm) | 97 |
| Object Resolution(μm) | 6.7 |
| Depth of Field(mm) | 0.6 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 157.6 |
| NA | 0.05044 |
|---|---|
| Filter Thread | M45 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
