VICO
C-Mount High Resolution Telecentric Lenses
WWK08-180-111V3-G
WWK08-180-111V3-G

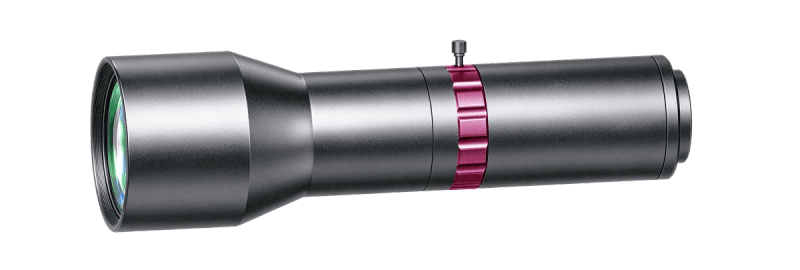

WWK08-180-111V3-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.8 |
|---|---|
| Working Distance(mm) | 180 |
| Max Sensor Size | 18.0(1.1") |
| F-Number | 8-32 |
| Telecentricity(°) | 0.08 |
| Distortion(%) | 0.038-0.037 |
| MTF30 (Image-side)(lp/mm) | 104.4-31.1 |
| Object Resolution(μm) | 6.72-26.85 |
| Depth of Field(mm) | 1-4 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 155 |
| Object Field of View(Φmm) | 22.5 |
|---|---|
| NA | 0.05-0.0125 |
| Coaxial Light Support | No |
| Iris | Yes |
