VICO

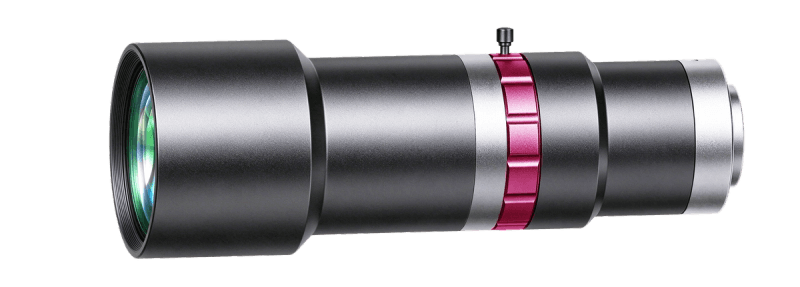

C-Mount High Resolution Telecentric Lenses
WWK08-110-111V3.1-G
WWK08-110-111V3.1-G
WWK08-110-111V3.1-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.8 |
|---|---|
| Working Distance(mm) | 110 |
| Max Sensor Size | 18.4(1.1") |
| F-Number | 6.6-22 |
| Telecentricity(°) | 0.025 |
| Distortion(%) | 0.12 |
| MTF30 (Image-side)(lp/mm) | 128-44 |
| Depth of Field(mm) | 0.825-2.75 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 147.4 |
| NA | 0.06-0.02 |
|---|---|
| Length of I/O(mm) | 274.9 |
| Coaxial Light Support | No |
| Iris | Yes |
