VICO

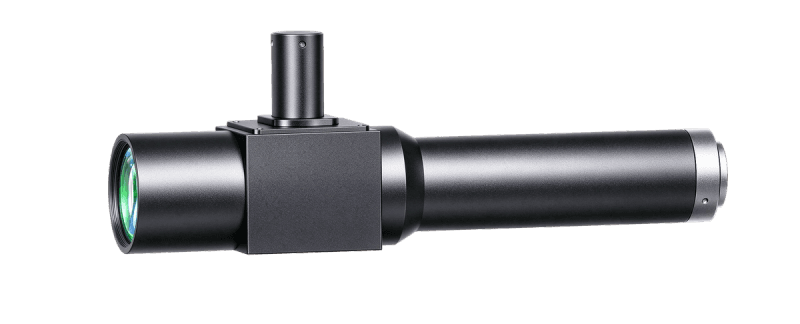

C-Mount High Resolution Telecentric Lenses
WWK078-390C-111
WWK078-390C-111
WWK078-390C-111 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.7 |
|---|---|
| Working Distance(mm) | 390 |
| Max Sensor Size | 17.6(1.1") |
| F-Number | 9.6 |
| Telecentricity(°) | 1.1 |
| Distortion(%) | 0.23 |
| MTF30 (Image-side)(lp/mm) | 89 |
| Object Resolution(μm) | 8.2 |
| Depth of Field(mm) | 1.3 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 233.2 |
| NA | 0.04109 |
|---|---|
| Filter Thread | M43x0.5 |
| Coaxial Light Support | Yes |
| Iris | No |
